2016
Year
FEADSHIP
Builder
109' 11" (33.5m)
Length
4
Cabins

GRAYCLIFFS - 2016 109' 11" FEADSHIP Feadship Lagoon Cruiser (FLC)
Fort Lauderdale Florida United States
($19,606,486 USD est.) €17,000,000 EUR

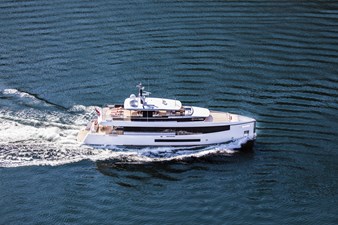

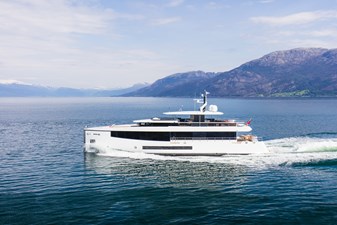

Yacht for sale is a 2016 FEADSHIP 109' 11" "GRAYCLIFFS" Feadship Lagoon Cruiser (FLC) Motor Yacht in Fort Lauderdale, Florida, USA.

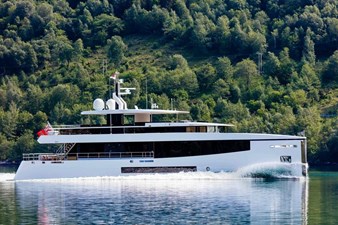

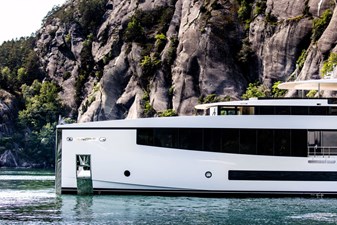

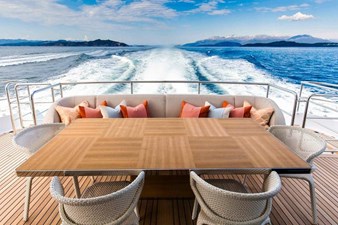

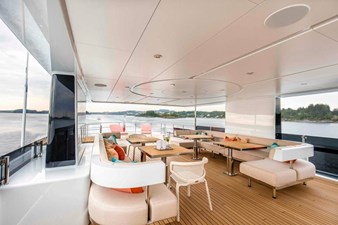

Step onboard Graycliffs (ex-Moon Sand Too), a 33,50-metre Feadship. Graycliffs was conceived for an owner seeking a yacht with a maximum length of 34 metres, shallow draught and full Feadship pedigree. Built in aluminium and boasting a vertical bow and expansive wrap-around windows, her exterior is as purposeful as it is elegant. Inside, Bannenberg & Rowell Design have crafted a refined interior that accommodates up to eight guests across four staterooms, served by a crew of six. With a gross tonnage of 262 GT, Graycliffs delivers a remarkably spacious and tranquil onboard experience - defined by extreme silence and an absence of vibration that set her apart from anything else in this size range. Generous alfresco living areas span multiple decks - from sun loungers and dining on the upper terrace to a welcoming aft deck and swim platform.

KEY FEATURES

• Rare opportunity to own a Feadship in this highly sought after size category

• Interior design by Bannenberg & Rowell

• Shallow draft of 1.8m, ideal for coastal cruising

• 2.5m ceiling height in main deck salon

• Generous VIP cabin on the lower deck that functions as a second master suite



Get more information on this listing
LENGTH 33.5m
BUILDER FEADSHIP
ASKING PRICE ($19,606,486 USD est.) €17,000,000 EUR
BUILT (REFIT) 2016 (2024)
BEAM 7.85m
DRAFT N/A
MAX SPEED 20 Knots
CRUISING SPEED 12 Knots
CABINS 4
GROSS TONNAGE 262.00
DISPLACEMENT 203000 Kg
LOCATION Fort Lauderdale, Florida, USA
Powered by YATCO, the Official MLS of Yachting
Get more information on this listing

FULL SPECIFICATIONS

DETAILED DESCRIPTION

  1. MAIN CHARACTERISTICS

    TYPE
    • Semi Displacement Motor Yacht
    BUILDER
    • Feadship
    HULL NO.
    • 691
    IMO NUMBER
    • 9745275
    MMSI NUMBER
    • 319095700
    NAVAL ARCHITECT
    • De Voogt Naval Architects
    EXTERIOR DESIGN
    • De Voogt Naval Architects
    INTERIOR DESIGN
    • Bannenberg & Rowell
    YEAR
    • 2016
    REFIT
    • 2024
    CLASSIFICATION
    • Bureau Veritas. I Hull Mach, Charter Yacht – Motor – A – Unrestricted Navigation, AUT-UMS
    CONSTRUCTION
    • Aluminium Hull & Superstructure
    • Teak Decks
    CREW
    • Up to 6
    FLAG
    • Cayman Islands
    ENGINES
    • 2 x MTU 12V2000M93. 1,340 kW @ 2,450 rpm
    GT
    • 262

  2. DIMENSIONS

    LOA
    • 33.50m / 109'11"
    BEAM
    • 7.85m / 25'9"
    DRAFT
    • 1.80m / 5'11" max

  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 20.00 knots
    CRUISING SPEED
    • 12.00 knots
    RANGE
    • 3,000nm at 12.00 knots

  4. CAPACITIES

    ACCOMMODATION
    • 8 guests in 4 cabin(s)
    CREW
    • 6 crew in 3 cabin(s)
    FUEL
    • 25,000 litres / 6,604 US gallons
    FRESH WATER
    • 5,800 litres / 1,532 US gallons
    LUBE OIL
    • 1,300 litres / 343 US gallons
    DIRTY OIL
    • 2,200 litres / 581 US gallons
    GREY WATER
    • 3,800 litres / 1,004 US gallons
    BLACK WATER
    • 2,300 litres / 608 US gallons

  5. ACCOMMODATION

    Accommodation for up to 8 guests in 4 cabins and up to 6 crew
    GUEST CABINS
    • 1 x Master cabin
    • 1 x VIP cabin
    • 1 x Double cabin
    • 1 x Twin cabin
    CREW CABINS
    • 1 x Captain cabin
    • 2 x Crew cabins

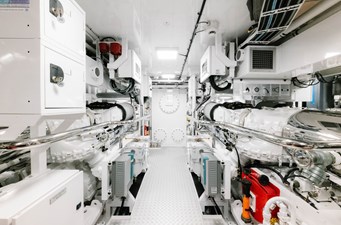

  6. MECHANICAL EQUIPMENT

    ENGINES
    • 2 x MTU 12V2000M93. 1,340 kW @ 2,450 rpm
    ENGINE HOURS
    • Starboard: 3,093 hours
    • Port: 3,093 hours
    GENERATORS
    • 2 x Kohler Tier III 70EFOZDJ Generators 70 kW@ 1,500 rpm
    GENERATOR HOURS
    • Port: 8,520 hours
    • Starboard: 8,376 hours
    GEARBOX
    • 2 x ZF 3351 / ZF Marine
    PROPULSION
    • Twin screw
    PROPELLERS
    • 2 x 5-blades high skew back fixed pitch, outward turning (1400 diameter)
    RUDDER ANGLE
    • 30 degree turn
    STEERING SYSTEM
    • Full 10 year service done (2025)
    STABILISERS
    • Quantum fins stabilizers QC-1200 Zero Speed
    BOWTHRUSTER
    • 50 kW Ocean Yacht Systems
    ELECTRICITY
    • 400V
    SHORE POWER
    • SP200 105kVA Shore Power Converter
    MAIN ENGINE START
    • Local from engine room/Remove from Pilot House.
    GENERATOR START
    • Local start Kohler panel. Auto start with DEIF units.
    CHARGERS
    • Mastervolt 24/50
    CONVERTERS
    • Mastervolt 24/1500
    EMERGENCY HYDRAULICS
    • Fire Pump
    • Diesel Pump
    • Bilge Pump
    AIR CONDITIONING
    • Heinen & Hopman, central ducted AC system for worldwide cruising
    WATER MAKER
    • 1 x Spot Zero Seaxchange 1.7 GPM/2,200 GPD
    WATER SYSTEM
    • Spot Zero mobile
    SEWAGE SYSTEM
    • Vacuum jets
    FUEL CENTRIFUGE
    • Connections offshore
    FUEL SEPARATOR
    • Mahle model no KFWA

  7. COMMUNICATION EQUIPMENT

    SATCOM
    • Inmarsat C with DSC. Thrane & Thrane Sailor 6110
    VHF
    • VHF Radio with DSC
    • 2 x Portable GMDSS VHF Jotron TR-20
    SSB
    • SSB radio MF/HF Transceiver with DSC
    INTERCOM
    • Navtex Furuno NX700B
    INTERNET
    • Starlink
    MISCELLANEOUS
    • Epirb Jotron Tron60GPS
    • Sarts Jotron,Tronsart-20
    • MH/HF (Fixed) Sailor 6310 MF.HF 250w

  8. DECK EQUIPMENT

    ANCHOR WINDLASSES
    • Muir
    AFT WARPING CAPSTANS
    • Muir
    ANCHORS
    • 2 x 160 KG Manson (Polished stainless steel)
    ANCHOR CHAINS
    • 2 x 147.5m
    BOAT CRANE & DAVITS
    • Removable 200kg manual davit on aft Flybridge
    PASSERELLE
    • Akerboom Custom Retractable
    SIDE BOARDING LADDER
    • Marquipt
    SIDE BOARDING GANGWAY
    • Yes
    SWIMMING PLATFORM
    • Yes
    AWNINGS
    • Yes
    COVERS
    • Yes

  9. ENTERTAINMENT EQUIPMENT

    • GENERAL

      • Custom AV system installed during build by specialist Marine AV integrators VBH. System with Crestron control via I-Pads in each area. There are Apple TVs and a central I-Tunes server for movie storage.
      • Cisco based WiFi network connected to a 4G GSM Gateway.
      • Satellite TV antenna installed on the hardtop.
      • Cabling preparation for future installation of a V-Sat communications system.
      • All blinds in guest areas (excl bathrooms) are electrically controlled (via manual switches).

    • MAIN SALON

      • 55” LED TV
      • Blu-ray
      • Surround sound
      • iPod docks

    • MAIN DECK AFT

      • High-quality local audio system with 2 pairs of speakers

    • FLYBRIDGE

      • High-quality local audio system with 3 pairs of speakers

    • OWNER’S SUITE

      • 46” LED TV
      • Blu-ray
      • Surround sound
      • iPod dock
      • Good quality local system

    • VIP CABIN

      • 40” LED TV
      • Blu-ray
      • Surround sound
      • iPod dock
      • Good quality local system

    • GUEST CABINS

      • 32” LED TV
      • Blu-ray
      • iPod dock
      • Good quality local system
      • 2 x speakers

    • CAPTAIN’S CABIN

      • 22” LED TV
      • iPod dock
      • CD/DVD with two speakers

    • CREW

      • 32” LED TV
      • iPod dock
      • CD/DVD with two speakers

  10. GALLEY & LAUNDRY EQUIPMENT

    GALLEY
    • 1 x Gaggenau ceramic cooktop (4 zone)
    • 1 x Gaggenau ovens 200 series
    • 1 x Gaggenau microwave 200 series
    • 1 x Gaggenau grill plate
    • 1 x Hood
    • 1 x Full height marine refrigerator
    • 1 x 3/4 height marine freezer
    • 1 x Undercounter refrigerator
    • 1 x Ice cube maker
    • 1 x Dishwasher
    FLYBRIDGE DECK
    • 2 x Drink Fridges
    • 1 x Hoshizaki Icemaker
    • 1 x Kenyon Electric BBQ Griddle
    • 1 x Sink
    MAIN ENTRANCE
    • 1 x Undercounter U-Line Wine Cooler
    STERN GARAGE
    • 1 x Gram Undercounter Refrigerator
    • 1 x Gram Undercounter Freezer
    LAUNDRY
    • 1 x Miele Professional Range Washing Machine
    • 1 x Miele Professional Range Tumble Dryer
    CREW
    • 1 x Miele Undercounter Fridge

  11. SECURITY & SAFETY EQUIPMENT

    SAFETY
    • 2 x 16 Man life rafts (Flybridge)
    • 2 x 8 Man life rafts (MD Aft ceiling)
    • Imtech – Free technics alarm and monitoring system
    SECURITY
    • CCTV system with 6 cameras
    FIRE FIGHTING
    • Novec system for Engine Room
    • Azcue centrifugal fire pump
    • Lombardini fire pump
    • Tyco fire detection and alarm system

  12. TENDERS & WATERSPORTS EQUIPMENT

    TENDER
    • 1 x 5.60m Pascoe International

  13. REFIT & MAINTENANCE NOTES

    • 2025:

      • Fixed fire helon tank 10-year service completed
      • Ice maker replaced

    • 2023/2024:

      • Underwater lights replaced
      • Air conditioning compressor replaced
      • Additional Furuno radar added
      • Transom door hydraulic system rebuilt
      • Magnus power transformer added
      • Washing machine replaced
      • Cooktop replaced

    • 2021 to present:

      • Annual ceramic coating on paint (hull and superstructure)
      • Annual bottom paint

  14. COMMENTS

    Step onboard Graycliffs (ex-Moon Sand Too), a 33,50-metre Feadship. Graycliffs was conceived for an owner seeking a yacht with a maximum length of 34 metres, shallow draught and full Feadship pedigree. Built in aluminium and boasting a vertical bow and expansive wrap-around windows, her exterior is as purposeful as it is elegant.



    Inside, Bannenberg & Rowell Design have crafted a refined interior that accommodates up to eight guests across four staterooms, served by a crew of six. With a gross tonnage of 262 GT, Graycliffs delivers a remarkably spacious and tranquil onboard experience - defined by extreme silence and an absence of vibration that set her apart from anything else in this size range. Generous alfresco living areas span multiple decks - from sun loungers and dining on the upper terrace to a welcoming aft deck and swim platform.



    • KEY FEATURES

      • Rare opportunity to own a Feadship in this highly sought after size category
      • Interior design by Bannenberg & Rowell
      • Shallow draft of 1.8m, ideal for coastal cruising
      • 2.5m ceiling height in main deck salon
      • Generous VIP cabin on the lower deck that functions as a second master suite
      • Expansive upper terrace for relaxing and entertaining
